6 Stage Reverse Osmosis System 50GPD | Under Sink Home Domestic, Removes up to 99% of Contaminants for the Very Best Drinking Water

Rating:

14 Reviews Add Your Review

As low as £129.99

In stock

Only %1 left

SKU

FF-RO-SYST-D6.

Finerfilters 6 Stage Domestic Under Sink Reverse Osmosis System

Reverse Osmosis is a technology that is used to remove the large majority (98%+) of contaminants from water. The Reverse Osmosis system works by pushing the water under pressure through a number of increasingly smaller filters and finally through a semipermeable membrane, essentially trapping all contaminants.

Finerfilters are here to support you before and long after you buy. We provide help through manuals, easy install guides, diagrams, phone, and email support.

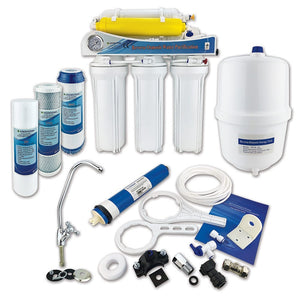

This system produces up to 190 litres per day of purified water and comes complete with:

Pressurised storage tank holding 6.5L / 3 US gallons of RO filtered water.
Installation Manual.

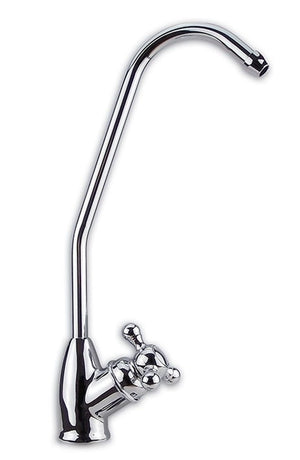

Chrome Faucet Tap.

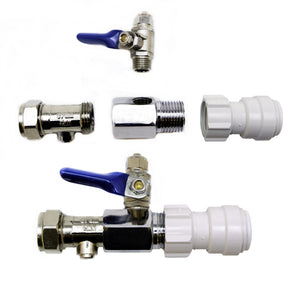

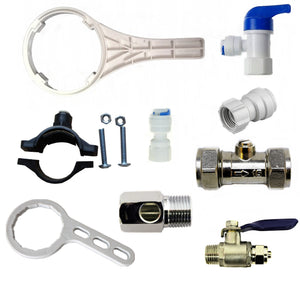

All pipes, pre-filters, post filters, and fittings required for easy installation.

Please ensure that your incoming mains water pressure meets or exceeds the recommended water pressure below before purchasing.

Categories: Domestic Reverse Osmosis, Reverse Osmosis Water Purifiers, Filter Systems for Hard Water Areas

Product Details

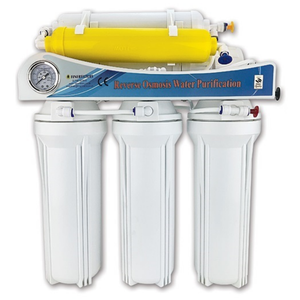

Finerfilters Domestic Undersink 6 Stage Reverse Osmosis System (50 GPD)

The 6 stages of filtration are;

Stage 1
A 5 Micron Sediment Filter Made of 100% Pure Polypropylene Fibres. Removes Dirt, Sand and Rust.

Stage 2
A Granular Activated Carbon Filter Composed of High-Performance Activated Carbon. Removes Free Chlorine, Odour, Organic Contaminants, Pesticides and Chemicals.

Stage 3
A Carbon Block Filter Composed of High-Performance Carbon. Removes Trihalomethanes, Pesticides and Volatile Organic Chemicals (VOCs).

Stage 4
A High Rejection Thin Film Composite 50 GPD Reverse Osmosis Membrane with the Capacity to Produce up to 190 Litres of Purified Water per day. This Membrane Removes Contaminants Present in Water Including, up to 99% of Dissolved Salts, Lead, Copper, Barium, Bacterial By-Products, Oestrogen and Silica.

Stage 5
A Post Carbon Filter Designed to Improve Taste. It Removes any Residual Impurities and Odours from the Tank and Provides a Finer Conditioning of the Purified Water.

Stage 6
Remineralizing filter to enrich the water ions with health essential minerals including; Calcium, Magnesium, Potassium and Sodium.

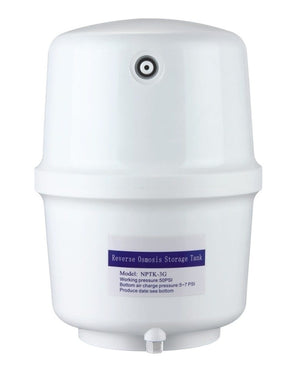

Plastic Water Storage Tank
Made of food-grade reinforced Polypropylene.
Contains a food-grade Butyl diaphragm/bladder which holds the water, ensuring tasteless, odourless & contaminant-free water.
This tank is an air bladder tank meaning the water does not touch the metal outer shell, but rests in a Butyl bladder. There is a small air charge between the outside of the bladder and the inside of the tank. It"™s this air pressure that pushes the water out of the tank when the tap is opened.
The tank is pre-charged with air but will require topping up as part of the regular maintenance of your reverse osmosis system. Air can be added using a bicycle pump or similar.
Tank:
This tank can be connected to additional tanks to increase the storage capacity of your Reverse Osmosis system.

Tank uses 1/4"Female x 1/4"Pushfit Angled Shut Off Valve.

Plastic tank holds 6.5 litres of water.Working Pressure: 50 PSIBottom Air Charge Pressure: 5-7 PSIDimensions: 36cm x 25cm x 25cm

System Measurements
6 Stage Reverse Osmosis System (No Pump)
Length: 45cm
Width: 26cm
Height: 44cm
Weight: 13kg

Important Information

Reverse Osmosis systems waste water to make water, this is normal and the same with all RO systems as this is the way the membrane rejects the impure water, which goes to drain, to produce the pure water. This process requires high water pressure as the 'permeate' water is being forced through microscopic holes in order to catch contaminants.

These systems require a minimum of 29 PSI / 2 Bar (Pumped RO Systems) or 45 PSI / 3 Bar (Unpumped RO Systems) to work. Ideal pressure depends upon incoming water temperature but around 60 PSI (4 BAR) is acceptable to produce pure water. We will always recommend purchasing an RO system with a booster pump pre-installed as this allows you to easily configure water pressure.

Membrane performance is dictated by several variables, most notably; incoming water TDS, pressure, and temperature. In order to achieve the 50GPD output stated the incoming water must match the test conditions which are; Concentration of Permeate (NaCl) = 250ppm, Water Pressure = 60 psi / 0.41MPa / 4.14 Bar, Temperature = 25°C

Because UK mains water is typically colder than test conditions we recommend that these systems are run at, or around, 80 - 90 PSI (5.5 - 6 bar). This allows the system to reduce the wastewater to pure water ratio and work quicker at producing pure water.

As many people won't have this mains pressure; pumped RO Systems or booster pumps can be purchased from us and added to the system which will increase the pressure output (a minimum of 29 PSI (2 bar) is required to operate the booster pump).

The membrane elements must be stored in a cool and dry place, away from direct sunlight. Do not expose to temperatures above 45°C

The membrane can last between 1 and 2 years depending on incoming water hardness. Filters must be replaced at least every six months for optimal performance.

List of contaminants that reverse osmosis removes

As Reverse Osmosis can remove over 1,000 contaminants, the list below is non-exhaustive and serves to highlight removal rates of only some of the most common contaminants found in drinking water.

Approximate percentage (%) of contaminants removed by Reverse Osmosis.
Aluminium	96 - 98%
Ammonium	80 - 90%
Bacteria	99+%
Boron	50 - 70%
Bromide	90 - 95%
Cadmium	93 - 97%
Calcium	93 - 98%
Chlorine	92 - 95%
Chloride	92 - 95%
Chromate	85 - 95%
Copper	96 - 98%
Cyandie	85 - 95%
Fluoride	95 - 98%
Graphene	80 - 90%
Hardness	93 - 97%
Iron	96 - 98%

Approximate percentage (%) of contaminants removed by Reverse Osmosis (Continued.)
Lead	95 - 98%
Magnesium	93 - 98%
Manganese	96 - 98%
Mercury	94 - 98%
Nickel	96 - 98%
Nitrate	97 - 99%
Polyfluoroalkyl (PFAs)	95%
Phosphate	95 - 98%
Potassium	92 - 96%
Silica	80 - 90%
Silicate	92 - 95%
Silver	93 - 96%
Sodium	92 - 98%
Sulphate	96 - 98%
Thiosulphate	96 - 98%
Zinc	96 - 98%

Specifications

More Information
Brand/Manufacturer	Finerfilters
Contaminants Filtered	Chloramine
Product Name	Finerfilters 6 Stage Domestic Reverse Osmosis Under Sink System With Fluoride Removal (50 GPD)
Model Number	FF-RO-SYST-D6.
Min. Working Temp.	0.6°C / 33°F
Max. Working Temp.	40°C / 104°F
Avg. Flow Rate	0.078m³/h = 1.3L p/m = 0.3 US gal p/m
Weight (kg)	11.000000
Height (mm)	450
Width (mm)	440
Depth (mm)	260
